Zooz Z-Wave Plus Toggle Dimmer Light Switch ZEN24 VER 3.0

Description

NOTE: Do NOT connect this switch to ceiling fans, motors, or home appliances. Use with lighting only.
NEUTRAL WIRE REQUIRED
SPECIFICATIONS:
• Model Number: ZEN24 VER 3.0
• Z-Wave Signal Frequency: 908.42 MHz
• Power: 120 VAC, 60 Hz
• Minimum Load: 15W for LED and CFL bulbs
• Maximum Loads: 500W single, 400W 2-gang, 300W 3-gang Incandescent, 150W CFL or LED
• Z-Wave Range: Up to 100 feet line of sight
• Operating Temperature: 32-104° F (0-40° C)
• Installation and Use: Indoor only

Will it dim my bulbs?
You’ll be able to adjust brightness levels between 10% and 100% (with full on/off capability) for the following popular dimmable LED bulbs:

• Amazon Basic
• BROADA
• CMYK Edison Style
• CREE
• Ecosmart
• GE
• Halo
• Philips
• Sunco
• Sylvania
• Utilitech Recessed Dimmable LED’s
• Utilitech Dimmable LED’s

Manual Operation:

• Click the toggle up to turn on the light to the last brightness level. It takes around 3 seconds for the dimmer to reach full brightness. The ramp rate is not adjustable.
• Click the toggle down to turn off the light (with a fade-out effect and 3-second ramp rate).
• Press and hold the toggle up to add more brightness. Press and hold it down to reduce brightness.
• After power failure, the switch will automatically turn on to the last brightness level.
• In a 3-way installation, the slave (mechanical switch) can only turn the light on or off. The slave switch will always turn the light on only to the last brightness level. Dimming is only available from the master Zooz switch and your Z-Wave software.

Manual or remote on/off and dimming control from your mobile device or computer (when included to a Z-Wave gateway controller – sold separately). Reports status instantly!

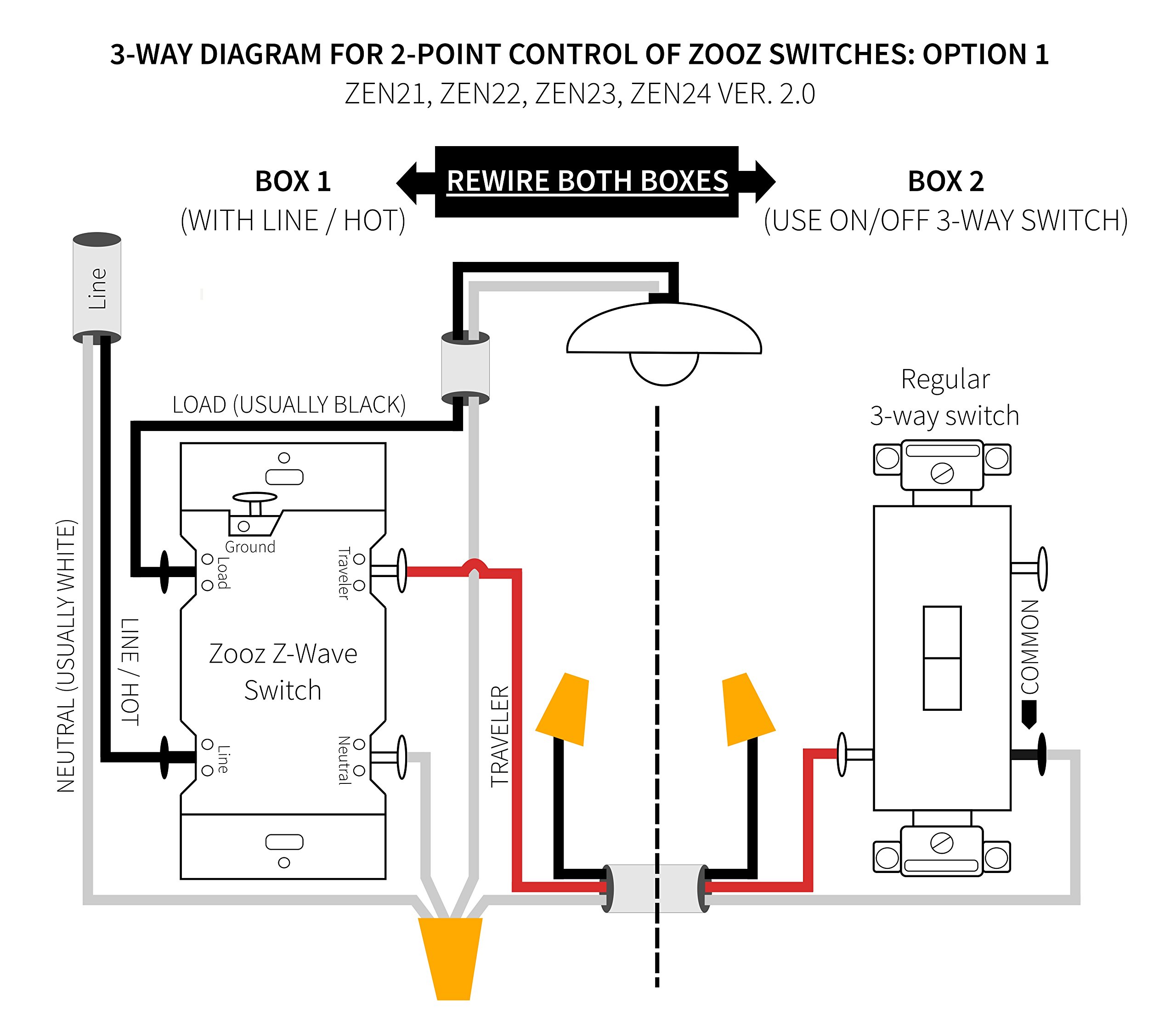

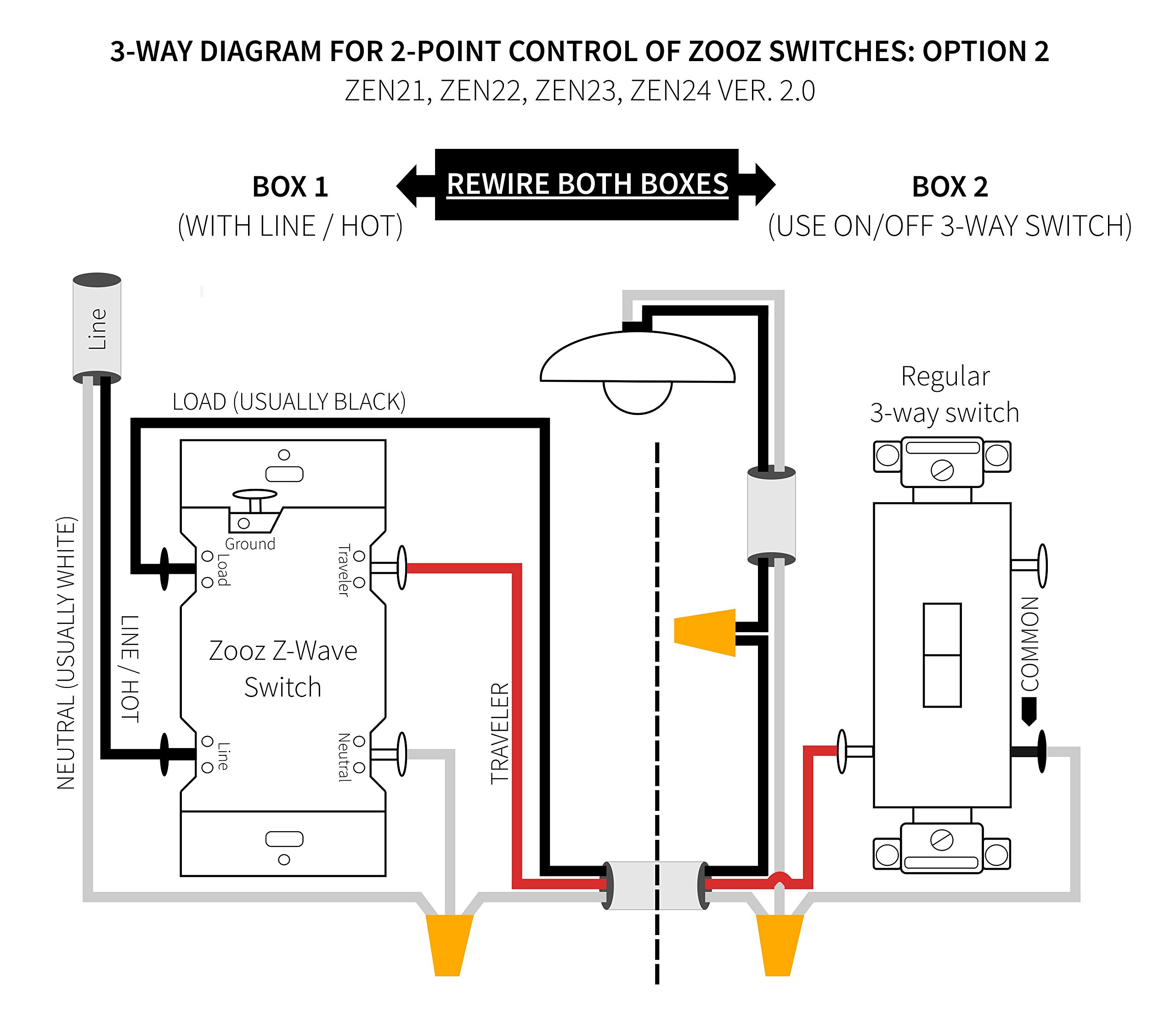

Direct 3-way Solution: no add-on switch needed! Works with mechanical 3-way switches as long as NEUTRAL is present. On/off only from the slave switch (dim lights from ZEN24 or your Z-Wave hub)
NEW! Improved dimming capability for LED bulbs (scroll down for details, NOT compatible with Luminus bulbs).
VERSION 3.0: More space for wall plate screws added (use short screws included in the box). Double tap to full brightness. Fully adjustable ramp rate (if you hub supports advanced setting input). Remembers and restores on/off/brightness status after power failure.
Neutral wire required! Z-Wave Plus certified > better range and communication speed. UL certified.
